Fiber Optic Connector LC/UPC SM 3.0mm SX LSZH

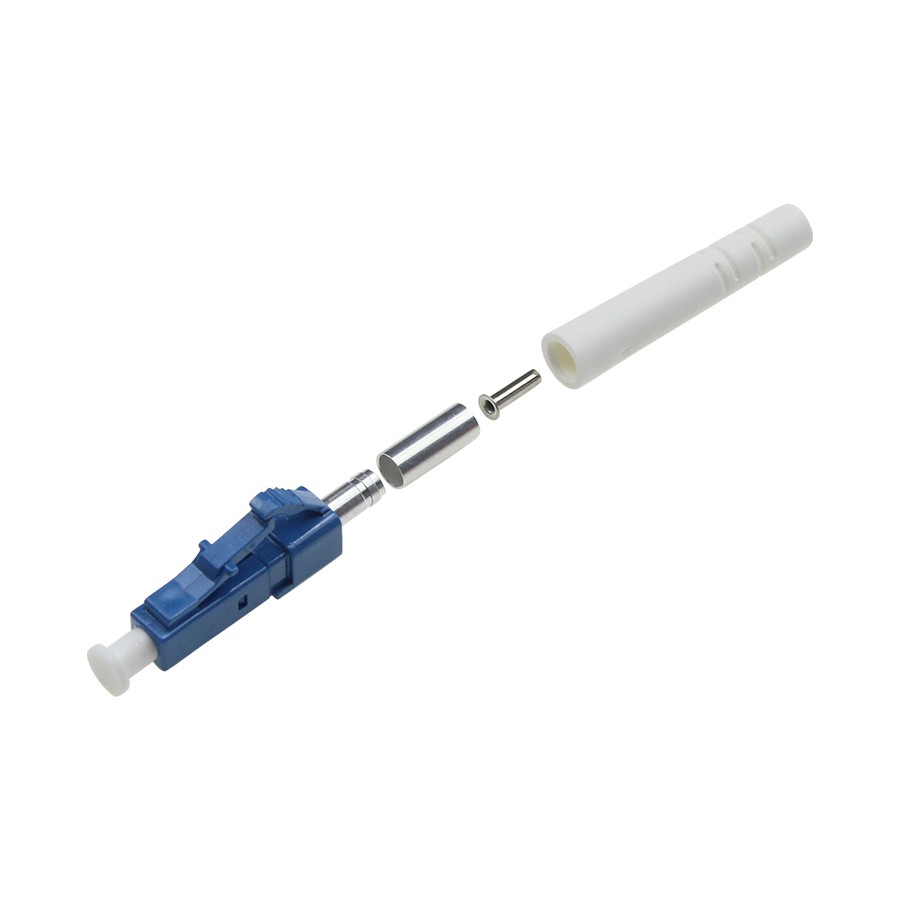

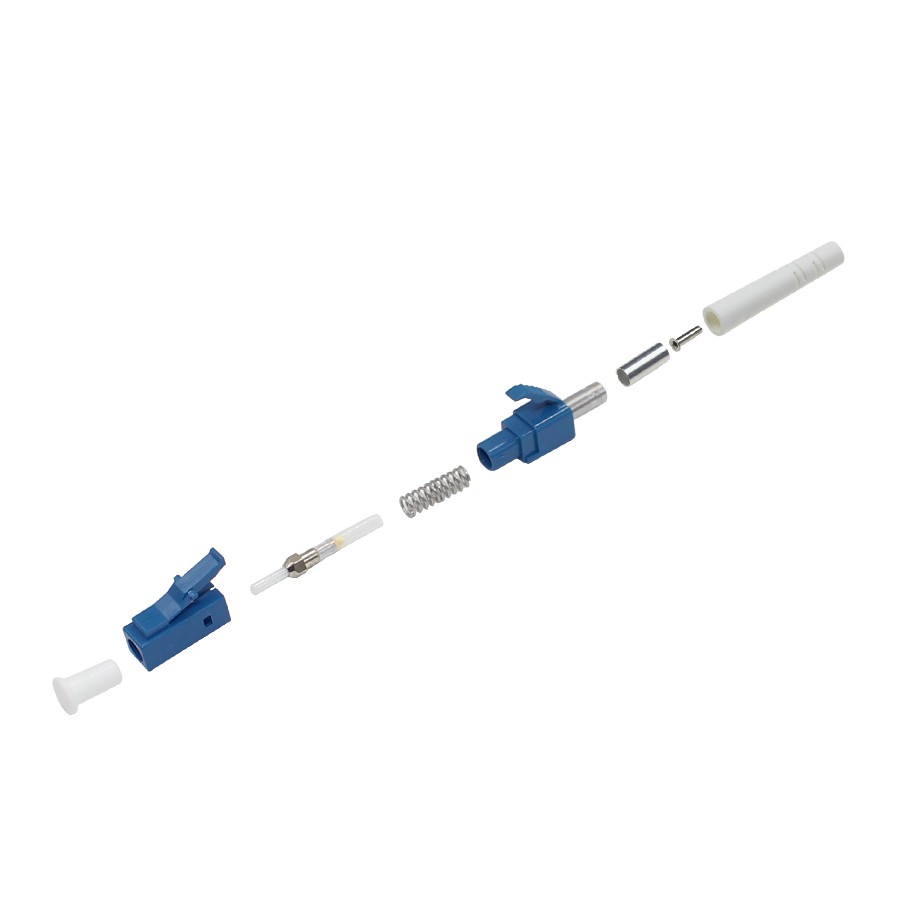

Fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assem bly plus a crimp-over sleeve and rubber boot.
Quick Details
Model Number:LC
Fiber type:SM MM
Color:Blue
Polish Type: UPC
Ferrule Material:Zirconia Ceramic
Fiber Mode: Single Mode
Fiber Count: Simplex
Cable Diameter:3.0mm
Durability: >1000times
Application:
FTTH FTTB FTTX Network

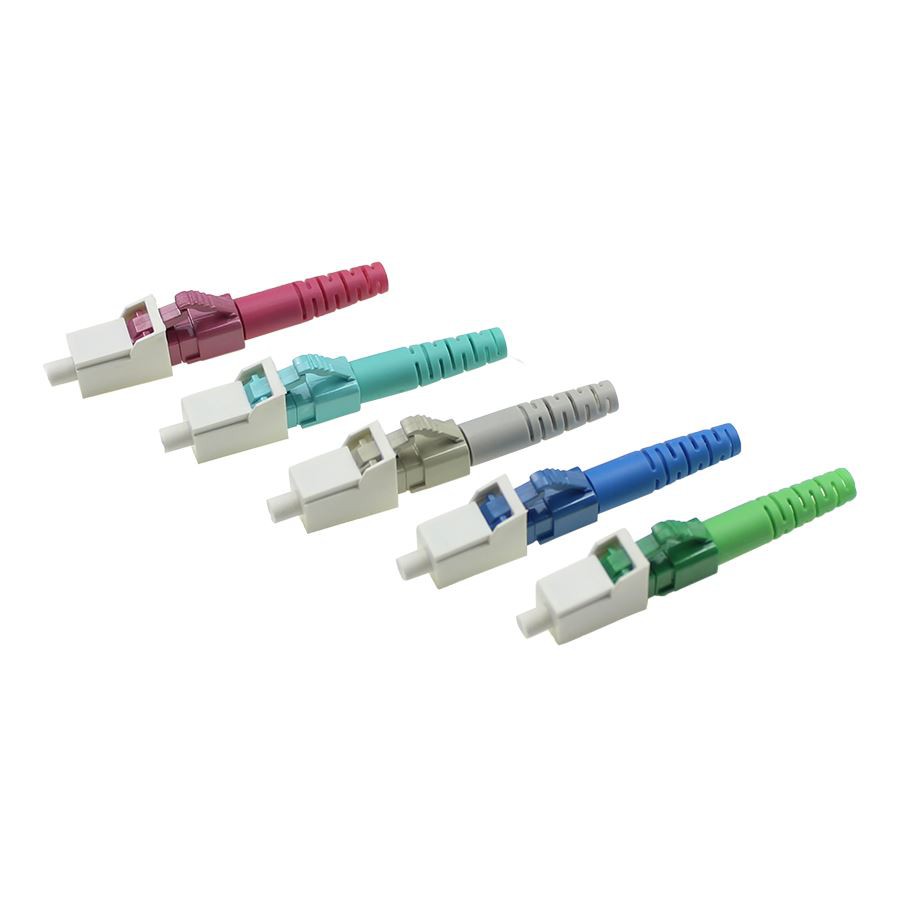

LC 3.0mm Fiber Connector
Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
Product Features:
1.High size precision.
2.Good repeatability.
3.Good changeability.
4.Good temperature stabilization.
5.High wearable.
6.A variety of tail sleeve types and colors
7.can provide 45 ° or 90 ° bend.
| Connector type | LC/UPC SM SX 3.0mm |
| Material | plastic |
| Operating Temp | -40~85°C |
| Durability | >1000times |
| Insertion Loss | @1310/1550nm≤0.2dB |
| Return Loss | ≥50dB (UPC),≥60dB (APC) |
Related Products
YingFeng develop moulds and produce various of kinds of Single Mode and Multimode fiber optic connectors for SC, LC, FC, ST, and MTRJ applications. Each fiber optic connector is functionally tested before shipping .
Application
-Fiber Optic Telecommunications
-FTTH (Fiber To The Home)
-CATV & CCTV
-Data Processing Networks
-Telecom Equipment
-Local Area Networks
Company Show
YingFeng design, develop moulds and produce various of kinds of Single Mode and Multimode fiber optic connectors for ST, SC, FC, LC, and MTRJ applications. Each fiber optic connector is functionally tested before shipping ,To provide customers with FTTX &Data Center product solutions and OEM/ODM services.
